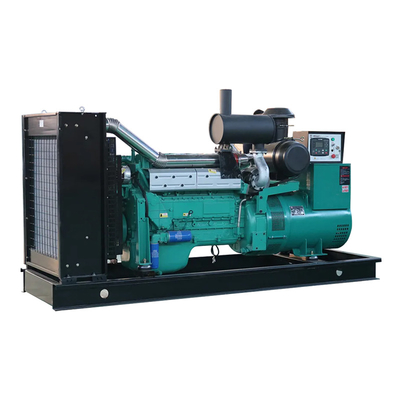

Cheap Price Diesel Genset 32kw ​​Diesel Engine Weichai 40/45kva Three Phase Diesel Generator 1650*650*1180mm

1 Set
MOQ
Cheap Price Diesel Genset 32kw ​​Diesel Engine Weichai 40/45kva Three Phase Diesel Generator 1650*650*1180mm
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Warranty: 3months-1year
Certificación: ISO
Model Number: SW45D
Rated Voltage: 400/230V
Rated Current: 57A
Speed: 1500RMP
Frequency: 50HZ
Weight: 800kg
Product Name: 32kw Power Diesel Engine Weichai 40/45kva diesel generator three phase
Rated Power: 32KW
Engine Model: With Weichai Diesel Engine
Alternator brand: Faraday
Cooling method: Air-cooled, Water-cooled
Starting method: Electrical Strat
Control panel: Customized
Size: 1650*650*1180mm
Package: PE Film Packing
Phase: 3 Phase 4 Wire
Información básica
Certificación: ISO
Model Number: SW45D, With Weichai Diesel Engine
Pago y Envío Términos
Packaging Details: Cheap Price Diesel Genset 32kw Power Diesel Engine Weichai 40/45kva diesel generator three phase PE Film Packing
Supply Ability: 100 Set/Sets per Month
Descripción de producto
Product Paramenters
DIESEL GENERATOR DATA:
Generator set model
SW45D
Size(L×W×H)
1650*650*1180mm
Rated power(KW)
32
Rated frequency(Hz)
50
Standby power(KW)
35
Rated power factor
0.8
Rated speed(RPM)
1500
Rated current(A)
57
Rated voltage(V)
400/230
Fuel tank capacity(L)
8
Weight(Kg)
800
Transformer capacity(KVA)
40/45
ENGINE DATA:
Engine model
WEICHAI WP2.3D40E200
Engine rated power(KW)
36
Standby power(KW)
40
Output volume(L)
2.3
Engine construction (four-stroke)
Turbocharge
Starting method
Electrical starting
Number of cylinders/
arrangement
4/L
Fuel injection mode
Direct injection
Cylinder diameter x stroke(mm)
89×92
Speed control
Electronic speed control
Cooling method
Closed cycle water cooling
Rated fuel consumption rate(g/kwh)
215
Discharge temperature (℃)
650
Gas fuel rate(m3/min)
2.5
Smoke exhaust volume(m3/min)
2.66
Exhaust back pressure(KPa)
8
ALTERNATOR DATA:
Alternator model
Faraday FD1K-4
Rated power(KW)
32
Standby power(KW)
35
Efficiency(%)
87.6%
Rated voltage(V)
400/230
Phase number and wiring
Three phase, Y type
Rated frequency(Hz)
50
Voltage regulation method
AVR
Rated speed(RPM)
1500
Class of insulation
H
Rated power factor
0.8
Level of increase temperature
H
Weight(Kg)
226
Protection class
IP23
Products Details
Company Information
Application
Exhibition Cooperation
Certifications
Packaging Logistics
FAQ
Q: Are you trading company or manufacturer ? A: We are industry and trade integration. Q: How about the price ? A:We can supply the most effective product with the best price. Q: How long is your delivery time? A: Generally it is 7~25 days if the goods are in stock. Or it is 45 days if the goods are not in stock, it is according to quantity. Q: What is your terms of payment ? A:If payment≤1000USD, 100% in advance. If payment≥1000USD, 30% T/T in advance, balance before shipment. Q:How is your Package? A:Plastic film (free of charge) or wooden case (add USD200 for wooden) . Q:Any advantage of control system? A:LCD, English display, safety protection, safety alarm, automatic start and stop, provide MODBUS agreement, use the RS232 communication interface and so on.
